Aspect
Aspect
The Glideline Aspect is a precision-engineered sliding system combining slim architectural sightlines with reliable structural performance. Built on a refined beaded sash and available with 15mm or 25mm interlock options, the Aspect delivers smooth operation, flexible configurations, and clean modern design — ideal for both residential and architectural glazing.
Get your quote:
mm x mm
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
2 Pane
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
Grey
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
Need to talk to an expert? Get in touch
Overview
Ultra-Slim Sightline
A true architectural sliding system featuring a refined 15mm or 25mm interlock sightline, delivering maximum glass and minimal frame.
Heavy-Duty Large Panel Performance
Engineered for large format glazing, the Aspect supports sashes up to 2.8m high and 315kg, allowing expansive openings without compromising smooth operation.
Advanced Thermal & Acoustic Efficiency
With Uw values from 1.3 W/m²K (double) and up to 1.0 W/m²K (triple) plus acoustic insulation up to 39 dB, The Aspect delivers strong thermal comfort and sound reduction for modern residential and architectural projects.
Precision Sliding with Flush Stacking
Panels glide effortlessly on precision adjustable wheels and can stack flush in a perfectly aligned line, maintaining a clean architectural finish while ensuring smooth, controlled movement even with large panels.
Integrated Drainage & Flush Threshold Design
Built-in drainage enables flush threshold installations without compromising water performance, combining accessibility, weather protection, and minimalist design in one engineered system.
Beaded Glazing System
A flexible beaded system allows the glass to be fitted and replaced efficiently, supporting glazing up to 36mm. This option provides practical flexibility for installation and future glass replacement where required.
Clean, secure and refined
With slim 15mm and 25mm sightline options, precision beaded glazing, and concealed integrated drainage, the Aspect system delivers clean aesthetics, dependable performance, and flexible configuration for modern glazing design.
Engineered for smooth operation, long-term reliability, and effortless style, it provides a balanced solution for both residential and architectural applications.
Practical, precise and adaptable
The system can be specified with a beaded glazing configuration, allowing glass units up to 36mm to be fitted accurately while supporting straightforward replacement if required. This provides practical installation flexibility without compromising the system’s clean architectural design.
Engineered for long-term usability and consistent performance, it offers a balanced approach between precision installation and future serviceability.
Flush, protected and dependable
Integrated drainage enables flush threshold configurations while maintaining effective water management and system performance. The concealed design preserves the refined architectural finish while supporting stability and resistance in varying weather conditions.
Built for lasting reliability and practical everyday use, it delivers a balanced combination of performance, protection, and clean design.
Options

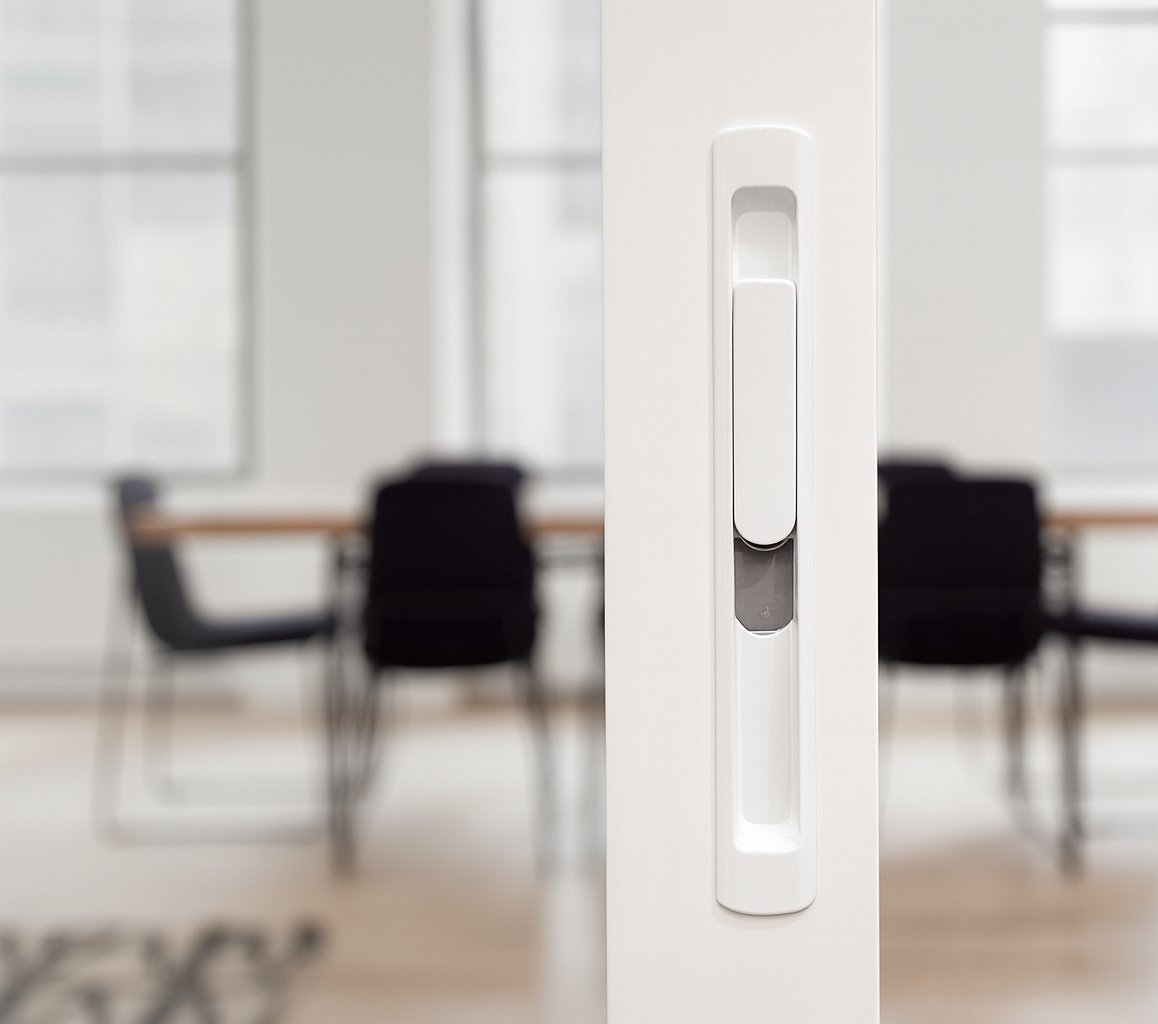

Handle colours
Technical specifications
General
Configurations: 2 Track, 3 Track, Quad Track
Sightlines: Interlock: 15mm or 25mm
Glazing: Max: 36mm
Maximum Sash Dimensions: Width L 2500mm Height (H) : 2800mm
Maximum Sash Weight: 315kg
Test Data
U Value (I)
Double glazing: Uw from 1.3 W/m²K
Triple glazing: Uw ≥ 1.0 W/m²K
Acoustic Insulation
Rw up to 39 dB
Air Permeability
Class 3* / 4**
Water Tightness
Class 7A
Wind Resistance
Class C5* / C2**
Security Test
PAS24 — Passed
Reviews
Excellent product quality. The slim sightlines and smooth sliding action make the Aspect feel premium and very well engineered. Solid, quiet, and beautifully finished — exactly what we wanted.
FAQs
What is the difference between the 15mm and 25mm interlock?
Both configurations use the same Aspect frame system. The 15mm interlock provides a slimmer sightline for a more minimal appearance and maximum glass area, while the 25mm interlock offers increased structural strength, making it better suited for larger panel sizes and higher wind load requirements.
What is a beaded sliding door system?
The Aspect system uses a precision beaded construction, allowing the glass to be installed and replaced without disturbing the sash. This improves serviceability, simplifies installation, and enables long-term maintenance while maintaining clean architectural sightlines.
Is the Aspect sliding system suitable for large openings?
Yes. The Aspect system is engineered for smooth operation and structural reliability across wide openings. The 25mm interlock option is typically preferred for larger panels, while the 15mm configuration is ideal where ultra-slim aesthetics are the priority.
