GS25 Sliding Doors
GS25 Sliding Doors
Transform your space with long-term performance, high energy efficiency and a stunning aesthetic.
Smooth Operation
Large Spans
Natural light
Get your quote:
mm x mm
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
1 pane
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
Black
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
Need to talk to an expert? Get in touch
Overview
Gliding Motion
The midrail of our sliding patio doors has been designed to offer a smooth motion. Sticking will be a thing of the past thanks to the smooth aluminium railing.
94% Glass Surface
Get a truly contemporary look from our sliding doors, which provide 94% glass surface. These aluminium patio doors will create minimalist, modern aesthetics for any home.
Noise Reduction Glazing
Our sliding patio doors have a soundproofing effect by cutting out background noise and disruptive sounds from your next project. With our aluminium sliding doors, homes can become more peaceful.
Opening Options

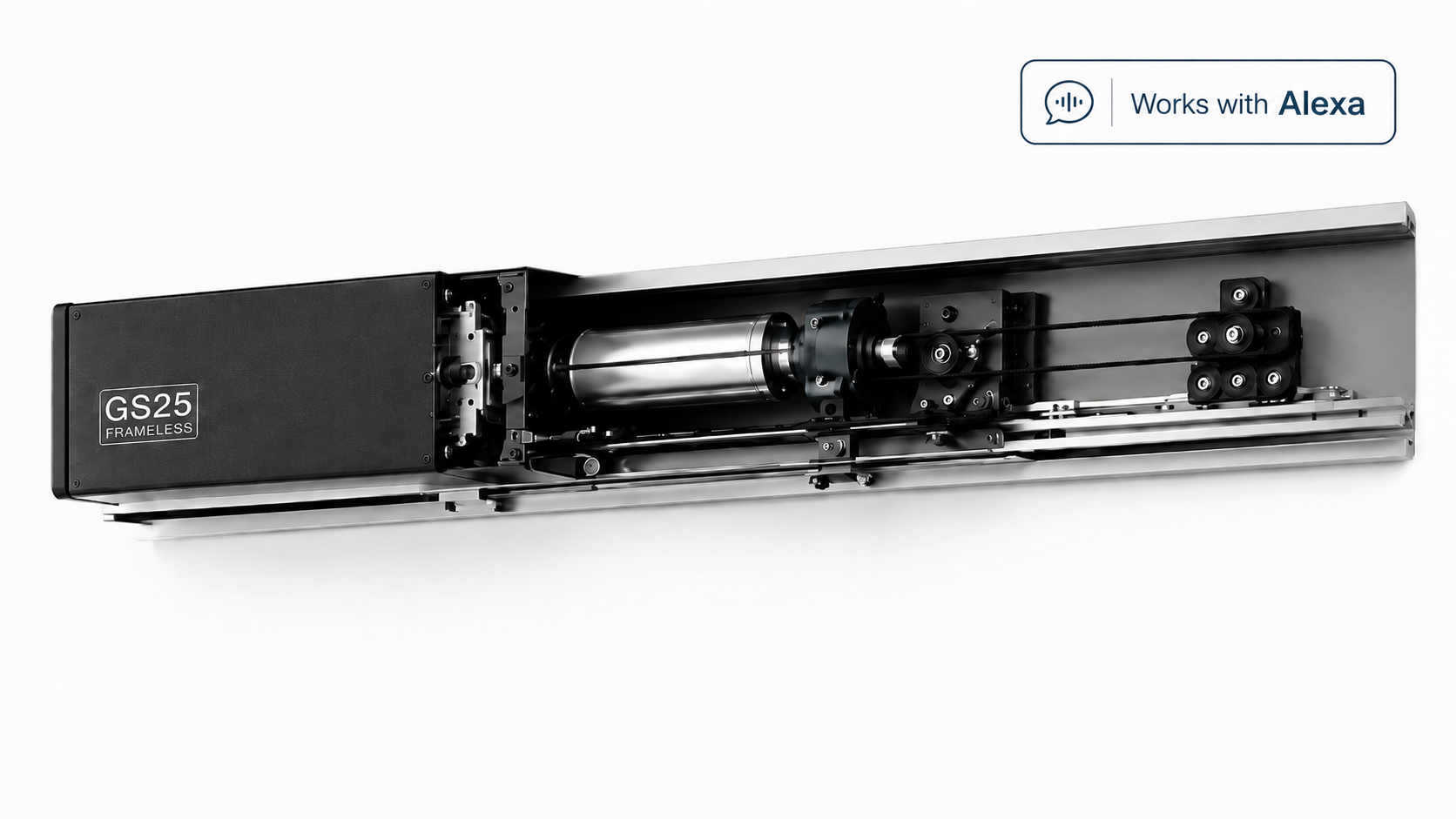

You can choose between a motorised opening for weights up to 700kg, which hides the sash within the frame, or a manual opening that can support up to 400kg, for your patio sliding doors.
Weatherproof Seals
Rigorously tested against a multitude of criteria, our sliding patio doors will offer a weatherproof performance. They’ll provide resistance to wind and rain in equal measure for a protected home.
25mm Visible Section
Living up to their name, our sliding patio doors feature just 25mm of visible section. With such a sleek profile, our aluminium sliding doors are perfect for homes with a minimalist aesthetic
Thermally Efficient Sliding Patio Doors
Sliding patio doors are the link between the interior of your or your customers home and the outside. So, it’s important that they are thermally efficient, keeping heat within your customer’s home. With an A+ energy rating, our aluminium sliding doors will keep your project warmer all year.
Aside from keeping the home warmer in the winter, sliding patio doors will also help prevent homes from overheating in the summer. This increased thermal efficiency could lead to less reliance on heating. In turn, our aluminium patio doors could save your customer’s money on utility bills. Our aim at Glideline is to help you look even better in front of your clients!
Light Inducing, Aesthetic Aluminium Patio Doors
Sliding patio doors have an incredibly slim profile, provided by their aluminium framework. This slim framework gives aluminium patio doors a sleek and elegant aesthetic for any home. With our aluminium sliding doors, you can add a touch of modern luxury to any property.
often have a lifespan well into the decades. This is afforded by the highly resistant and durable nature of aluminium, which resists ageing and rust for decades. When you choose our sliding patio doors, you’re choosing a long term solution.
Featuring a slim profile, these aluminium patio doors can have a glass area of up to 95%. Utilising a massive amount of glazing, these aluminium sliding doors allow a massive amount of light to enter your client’s home improvement project. This will enhance your given space’s decorative style even further.
Long Lasting, Waterproof Sliding Patio Doors
Sliding patio doors are rigorously tested to provide homes with an excellent level of weatherproofing. Having been tested for air permeability, watertightness, and wind resistance, aluminium patio doors will provide a hard wearing quality. They’ll keep the elements at bay for decades to come.
Aluminium doors often have a lifespan well into the decades. This is afforded by the highly resistant and durable nature of aluminium, which resists ageing and rust for decades. When you choose our sliding patio doors, you’re choosing a long term solution.
Options
Handle colours

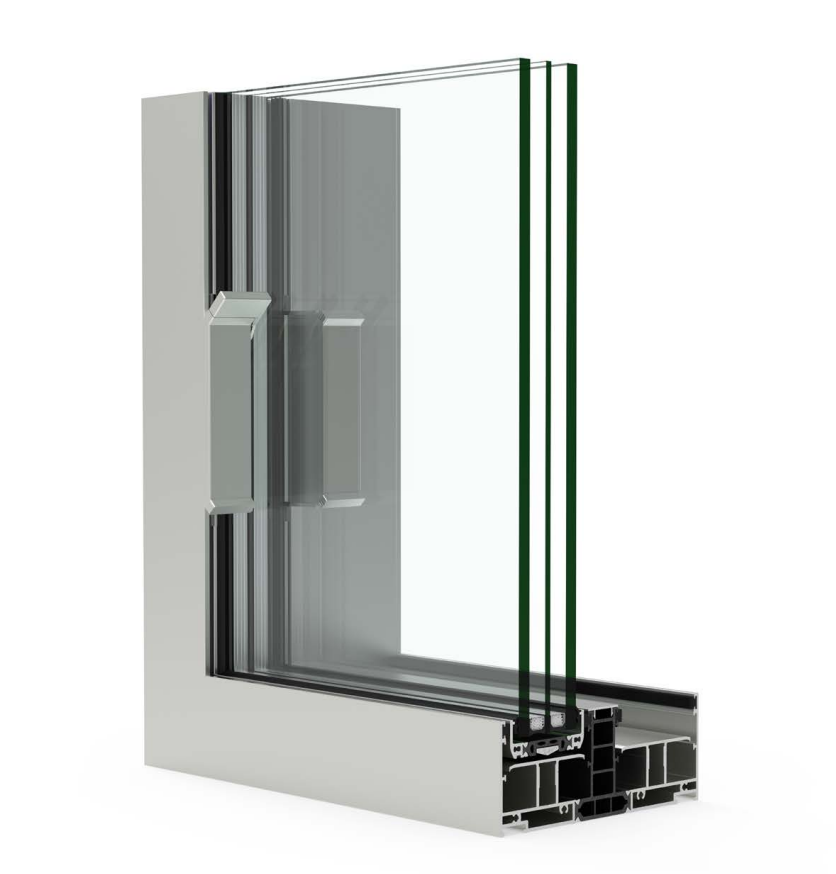

Technical specifications
General
Interlock profile: 25mm
Possibility to embed frames within the wall
Up to 4 rails
Thermally broken
Possibility of sash encounters at a 90o corner without a mullion
Maximum width of panels 4000mm
Maximum height of panels 4000mm
Maximum panel area 14m2
Maximum panel weight 400kg
Maximum glazing thickness 56mm
Test data
U value from 0.9 (W/m2K)
Maximum acoustic insulation 43Db
Air permeability (EN 12207:2000): Class 4*/4**
Water tightness (EN 12208:2000): Class 7A*/9A**
Wind resistance (EN 12210:2000): Class C3*/C4**
*Reference rest: Balcony 4.0 x 3.0m. 2 sashes.
**Reference test: 4.0 x 3.0m. 1 sash + 1 fixed.
Finishes
Standard finishes RAL7016, RAL9005 and RAL9010
Split color option for interior/exterior
Available in RAL colours
Colour Finishes
Available from Glideline
Powder Coating RAL Finish
Powder Coating RAL Finish
- Standard 7016M and 9005M, 9010G
- Available in 150+ RAL finishes
- Textured finish available
- Split color for interior/exterior
Anodized aluminium
- Class 15; 15-19 micrometer coating for external use as standard
- Class 20; 20-24 micrometer coating for use in aggressive conditions, industrial areas and marine pollution
- Silver brushed, silver rough brushed, bright silver, matte silver, brushed steel, rough brushed steel, brushed champagne re-polished, bright gold, rough brushed inox re-polished, brushed stainless steel, rough brushed ivory re-polished, brushed bronze, rough brushed bronze and re-polished, rough brushed copper re-polished, rough brushed Bordeaux re-polished, rough brushed green, rough brushed blue re-polished, rough brushed grey re-polished, matte black
Wood effect powder coating
- Available in pine, oak, cherry wood, sapele, African walnut, walnut, chestnut and white wood
Reviews
Thank you to the installers Joe and Luke for their hard work. It wasn't easy going up all the stairs but they were happy doing so and I couldn't be happier with the doors. Also Henry has been fantastic from start
Glideline installed 6 sets of sliding doors in our house. This was a major investment for us so we wanted it to be just right. David and all the team were friendly and helpful from start to finish. Henry was great.
FAQs
What U-values do they achieve?
Our sliding patio doors can have U-values as low as 0.9 W/m²K. With such a low U-value being provided by our aluminium sliding doors, your or your customer’s home will have an energy efficient home.
What’s the maximum glazing thickness?
Your aluminium sliding doors can achieve a glazing thickness of up to 54mm, able to offer triple as well as double glazing. We also include several opening possibilities for our sliding patio doors, giving customers plenty of options.
Do you offer wood effect finishes?
If you have a traditional home, you might be wondering if sliding patio doors will match with your project design. However, with our sliding doors wood effect finish, they’ll fit perfectly.
